FLEXIBLE GEAR COUPLING


IndustrialGearPoint are distinguised by their MECHANICAL FLEXIBILITY and compensation of MISALIGNMENT of the connected shafts automatically without any loss of transmitted power during running. These coupling ensure greater flexibility because of their well designed tooth formation generated by INVOLUTE system to ensure uniform toothe PROFILE AND PITCH.


LUBRICATION

The coupling must be fitted with grease or oil. It is recommended to use grease where the maximum temperature is within 800C & for temperature above 800C oil should be use.

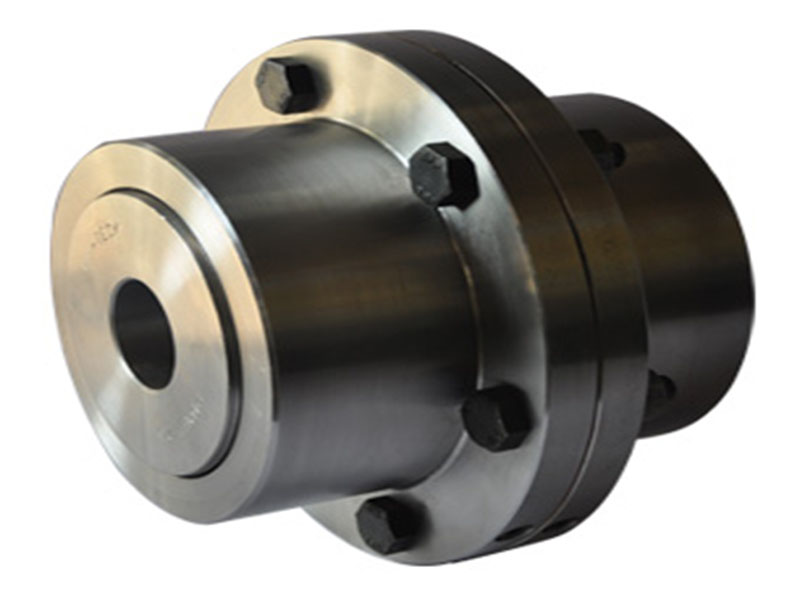

FLEXIBLE GEAR COUPLING 1

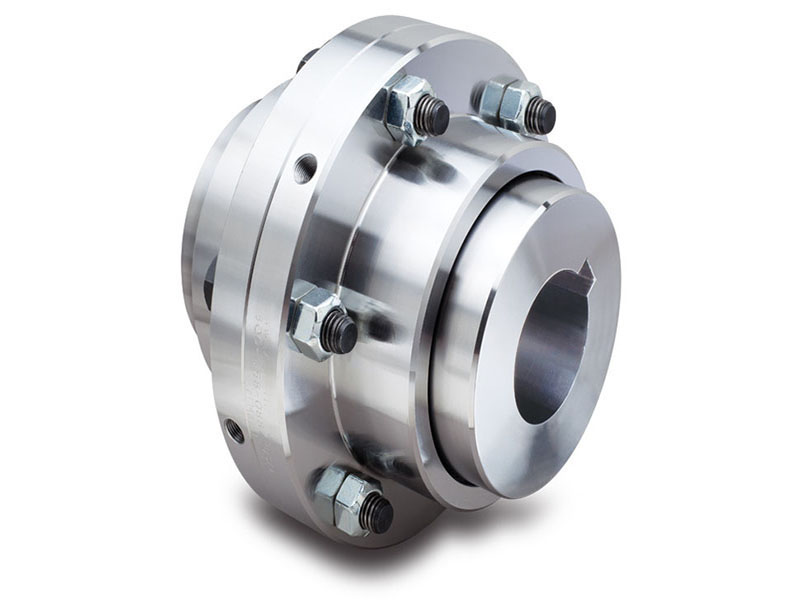

FLEXIBLE GEAR COUPLING 2

FLEXIBLE GEAR COUPLING 3

COMMON FOR BOTH COUPLING FULL FLEXIBLE TYPE HALF FLEXIBLE TYPE

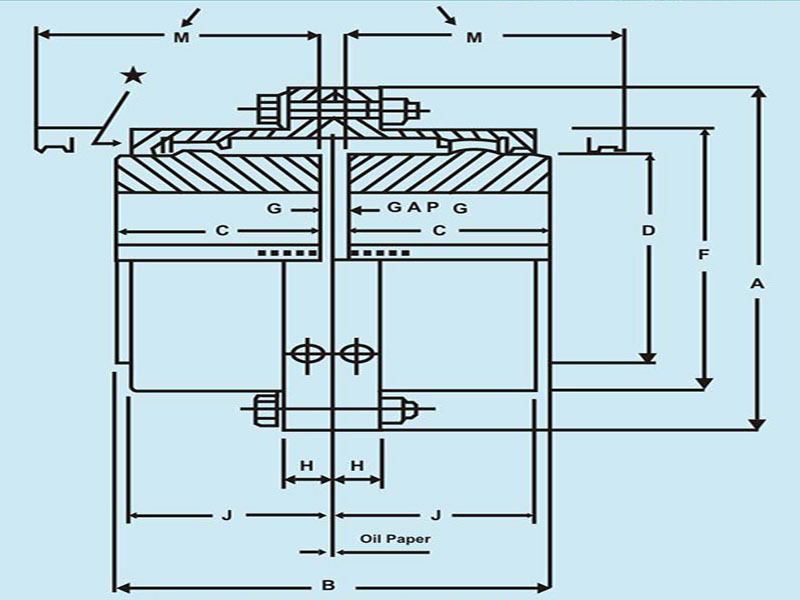

Gear Coupling NO. H.P. Capacity AT 100 R.P.M. Max. TORQUE Kg. M. Max R.P.M. Bore Min. A C D F M G H Bore MAX. J B WR² Kgm² Wt.In Kg K Q Bore Max. F1 WR² Kgm² Wt. in Kg
KCI 100 7 50 8000 10 120 45 50 75 55 1.5 15 30 39.5 93 0.03 4 93 46.5 50 70 0.03 4
KCI 101 14 100 6300 20 170 55 65 110 65 2.5 17 40 49 115 0.14 10 115 57.5 60 85 0.15 10
KCI 102 35 250 5000 30 185 70 85 125 80 2.5 17 55 62 145 0.20 15 145 72.5 75 110 0.24 15
KCI 103 63 450 4000 40 220 85 105 150 105 2.5 20 70 78 175 0.48 25 175 87.5 90 130 0.51 25
KCI 104 119 850 3350 50 250 105 130 175 125 2.5 20 85 96 215 0.95 39 215 107.5 110 160 1.0 40
KCI 105 182 1300 2800 60 290 110 155 200 140 5 25 105 106 230 1.90 59 230 115 130 185 2.0 60
KCI 106 280 2000 2500 75 320 125 175 230 155 5 25 120 117 260 3.00 85 260 130 150 215 3.3 85
KCI 107 490 3500 2100 90 350 140 205 260 175 5 25 130 134 290 5.25 103 290 145 170 240 5.8 106
KCI 108 630 4500 1900 105 380 155 230 290 190 5 25 150 147 320 8.50 138 320 160 200 285 9.5 149
KCI 109 784 5600 1700 125 430 165 250 330 205 5 25 170 156 340 15.00 210 340 170 220 315 16.8 200
KCI 110 1148 8200 1400 140 490 180 310 390 220 5 25 210 171 370 30.50 277 370 185 260 370 35.0 274
KCI 111 1536 11000 1250 160 545 200 350 445 240 5 30 260 192 410 58 550
KCI 112 2053 14700 1120 180 590 240 400 490 280 5 30 300 231 490 88 710
KCI 113 2793 20000 1000 200 680 260 440 555 310 7.5 35 330 242 535 138 980
KCI 114 3994 28600 900 220 730 280 500 610 330 7.5 35 370 266 575 291 1320
KCI 115 4852 34750 800 250 780 320 540 660 370 7.5 35 410 305 665 353 1700
KCI 116 8378 60000 710 300 900 350 625 755 425 10.0 45 455 335 720 680 2550
KCI 117 11917 83550 630 375 1000 400 720 855 460 10.0 45 520 386 820 1235 3620
KCI 118 15778 113000 560 450 1100 450 810 950 510 10.0 55 610 430 920 1965 4860
KCI 119 20805 149000 500 520 1250 485 910 1050 560 15.0 55 710 446 1000 3012 6380

NOTE:-

1.Made to order/special Gear Couplings also can be manufactured
2.Dynamic balancing & Heat Treatment Will be done on request.(Extra)
