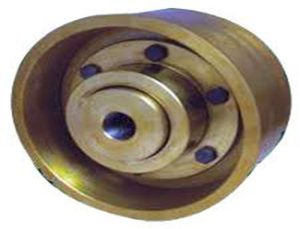

BREAK DRUM WITH FLEXIBLE GEAR COUPLING

BREAK DRUM WITH FLEXIBLE GEAR COUPLING

BREAK DRUM WITH FLEXIBLE GEAR COUPLING

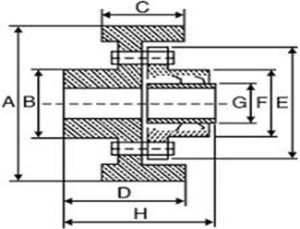

COUPLING SIZE	FINISH (I) BORE		ØA	ØB	C	ØD	E	F	G	H	Weight Kg.	TORQUE	MAX RPM
	Min. Max
KCI 150	15	30	150	60	78	113	120	75	50	128	7.5	50	8000
KCI 160	15	30	160	60	85	110	120	75	50	110	8	50	8000
KCI 200	20	45	200	80	96	110	170	110	65	124	15.2	100	6300
KCI 250	20	45	250	80	110	165	170	110	65	154	24	100	6300
KCI 250	20	55	250	80	120	165	185	125	85	169	25.5	250	5000
KCI 300	30	70	300	96	150	165	220	150	105	175	44.4	450	4000
KCI 300	40	85	300	96	150	165	250	175	130	195	51.4	850	3350
KCI 400	40	85	400	150	180	206	250	175	130	230	80	850	3350
KCI 400	40	105	400	150	180	210	290	200	155	235	90	1300	2800
KCI 500	50	120	500	200	225	256	320	230	175	265	160	2000	2500
